Thermal and Fluidic Phenomena in the Operation of a Single Loop Thermosyphon
A single loop thermosyphon is composed of four elements:
- The evaporator: where the absorbed latent heat changes the working fluid’s phase from liquid to a liquid-vapor mixture
- The condenser: where the latent heat rejection changes the vapor back to the liquid phase
- The riser: which transports the liquid-vapor mixture upward from the evaporator to the condenser
- The downcomer: which carries the liquid downward from the condenser to the evaporator

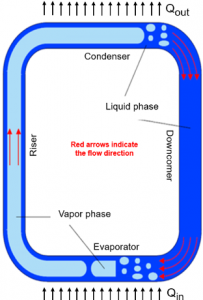

A schematic of a single loop thermosyphon is reported in Figure 1. The condenser must be placed above the evaporator to favor buoyantly driven passive flow circulation, and due to the small channel sizes, slug and annular flows are the main flow patterns occurring during the operation of a thermosyphon [2, 3].
As general design guidelines for electronics cooling applications, it is important to ensure a subcooled liquid at the evaporator inlet and a sufficiently low vapor quality at the evaporator outlet to avoid four phenomena related to the two-phase flow in micro-channels and thermosyphons in particular:
- Dry-out: the vapor phase, with its poor heat transfer characteristics, may blanket the wall when the vapor quality approaches one. Therefore it is imperative to have a fully wetting flow at the evaporator outlet. Generally, the thermosyphon can safely operate with vapor quality in the range of between 0.1 and 0.5. Note: vapor quality is defined as the ratio between the mass of vapor flow divided by the total mass flow rate (liquid and vapor)
- Instabilities: a subcooled liquid at the evaporator inlet eliminates pressure-related instabilities in micro-channels and Ledinegg’s instability in a thermosyphon loop
- Backflow: at high heat loads, the rapid growth of vapor may push the flow backward, triggering flow instabilities and decreasing thermal performance. The subcooled liquid prevents this from occurring, but it must be coupled with careful design of the inlet manifold and flow distribution in the evaporator
- Gravity-driven flow: a single loop thermosyphon has two working regimes. The gravity-dominant regime occurs when the buoyancy in the riser is the primary force, up to when the heat duty creates sufficient vapor qualities to change to friction-dominant flow. A thermosyphon should be designed to operate in a gravity-dominant regime as the mass flow rate increases with the heat load, and the subcooled liquid at the evaporator inlet serves this purpose
Subcooling at the inlet and the latent heat transfer both affect the thermal performance. They are related to the heat load through the energy balance on the working fluid:
where Q (W) is the total heat load (comprised of subcooled and saturated heat loads), (kg/s) is the coolant mass flow rate, cp (J/kg/K) is the specific heat at constant pressure, ΔTsub (K) is the subcooling at the evaporator inlet, Δhlv (J/kg) is the latent heat of vaporization, and xout (-) is the outlet vapor quality. To minimize the total thermal resistance, the subcooled heat load needs to be minimized, while the saturated heat load needs to be maximized. Therefore, it is paramount to find the right trade-off together with the design guidelines reported above.
Test Results with a Single Loop Thermosyphon Prototype

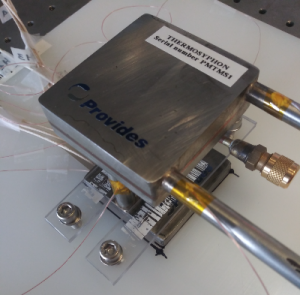

A newly designed thermosyphon prototype suitable for server-level cooling is depicted in Figure 2; Figure 3 illustrates a schematic diagram including the main components and measurements. The main components of the test setup are the following:
- A low-height water-cooled thermosyphon designed for cooling 2-U servers. The evaporator was directly attached to the heat source via a highly conductive thermal grease (Thermal Grizzly Kryonaut: thermal resistance of 0.0032 K/W and thermal conductivity of 12.5 W/m/K)
- A pseudo-chip with a footprint area of 4 x 4 cm2 designed with four cartridge heaters in parallel, that were located in a copper block. Four calibrated K-type thermocouples (accuracy of ± 0.25 °C were used to measure the mean heater temperature. The junction (evaporator base) temperature was evaluated from the mean heater temperature and a 1-D heat conduction calculation accounted for the thermal resistance through the copper and thermal interface material. Another K-type thermocouple was attached on the adiabatic section of the riser to measure the saturation temperature
- A thermal bath circulated cold water at a given temperature and flow rate on the secondary side of the thermosyphon. Its flow rate was indirectly determined from an energy balance using the water’s temperature rise, with K-type thermocouples attached on the inlet and outlet tubes, and imposed heat load, assuming negligible heat loss to the ambient
- A customized charging station (not shown here) was designed and fabricated to fill the thermosyphon with R1234ze up to the desired charge
- An electrical circuit (a power supply, four cartridge heaters and a shunt resistor) were used to power the pseudo-chip and to accurately measure the heat delivered to the refrigerant flow (maximum value of 333 W, but thermosyphon tests were executed up to about 200 W)
- A data acquisition system was coupled to LabView to control the operating conditions, monitor the thermal performance over time, and record the measured parameters (i.e. temperatures, power, etc.), which were post-processed separately

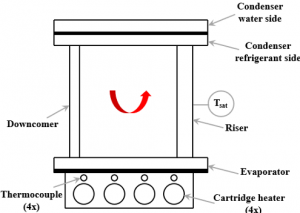

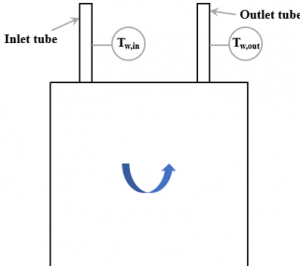

Figure 3: Schematic diagram of the thermosyphon: (a) front view, where the red arrow indicates the refrigerant flow direction; (b) top view showing the condenser secondary side and water flow direction.
Table 1 reports the external dimensions of the thermosyphon (the internal features are confidential).
|Table 1: Dimensions of the thermosyphon.|
|Evaporator length, width and depth||60 x 60 x 9.50 (mm)|
|Riser height||42 (mm)|
|Riser external diameter||10 (mm)|
|Condenser length, width and depth||60 x 60 x 18.50 (mm)|
|Downcomer height||42 (mm)|
|Downcomer external diameter||8 (mm)|
|Total thermosyphon height||70 (mm)|
The cooling capabilities of the server-level thermosyphon were evaluated under transient and steady-state conditions. In particular, the results presented in this section refer to a secondary side water mass flow rate in the condenser of 364 kg/h and water inlet temperature of 15°C and a maximum heat load of 200 W (corresponding to a footprint heat flux of 16.3 W/cm2) using the refrigerant R1234ze as the working fluid. This is a very promising refrigerant for electronics cooling applications due to its negligible environmental impact (i.e. Global Warming Potential is less than 1) .

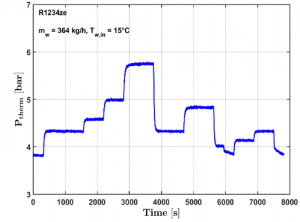

Figures 4(a) and 4(b) depict the server-level thermosyphon thermal performance with a maximum heater temperature of 46°C at the maximum power of 200 W, while the corresponding system pressure was measured to be only 5.8 bar. No temperature overshoots or pressure fluctuations were observed, meaning that the thermosyphon offered stable cooling over a wide range of changing heat loads. Also, rapid thermal responses and smooth transients were observed during the start-up operations at the times of 300 s (0-100 W) and 6,300 s (0-70 W). This is due to the fact that passive two-phase flow instabilities were minimized by ensuring the right level of liquid in the downcomer in order to prevent condenser flooding and to balance the total pressure drop in the loop (the latter was important to avoid intermittent flow in the evaporator which may induce partial dry-out). The temperature and pressure measurements followed similar trends and they both increased with the heat load, due to the higher vapor formation rate in the closed system.

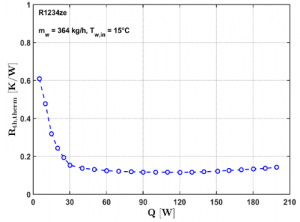

Figure 5 shows the total thermal resistance as a function of the heat load. Conduction thermal resistance played a negligible role in the heat transfer as the gravity-driven two-phase flow circulation was triggered at very low heat loads (3-5 W). Overall, the total thermal resistance decreased with increasing heat load due to the enhancement of the boiling process due to the higher refrigerant mass flow rate, vapor quality and heat flux. The change in the thermal resistance slope at about 30 W coincided with the enhanced heat transfer performance when changing from slug-plug flow to annular flow in the evaporator. The minimum value of thermal resistance was about 0.113 K/W when the heat load was 120 W.
Calculation of Working Fluid’s Mass Flow Rate
The thermosyphon’s working fluid mass flow rate could not be directly obtained through single-phase pressure drop measurements  or energy balance calculations  due to the small form factor of the system. A commercial code [9, 10] was then used to estimate the thermosyphon mass flow rates. Specifically, the inputs needed to solve for the mass flow rates were the full geometry, fluids (R1234ze and water), operating conditions, and measured thermal resistance curve (see Figure 5). This in-house simulator has already been shown to be accurate in validations against many independent thermosyphon databases [8, 11-14].

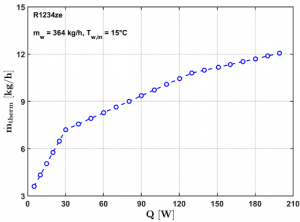

Figure 6 depicts the simulated thermosyphon mass flow rates as a function of the heat load. As expected, the mass flow rate increased with the heat load due to the larger system driving force (buoyancy in the riser), which was able to overcome the total pressure drop in the thermosyphon (evaporator, riser, downcomer, and condenser). The server-level thermosyphon was seen to be operating in the desired gravity-dominant regime .

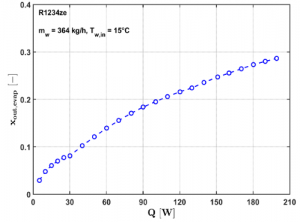

Figure 7 presents the corresponding outlet vapor quality as a function of the heat load, calculated through an energy balance across the evaporator under the assumption of negligible heat loss to ambient (reasonable as the thermosyphon is fully insulated). The highest exit vapor quality was 29%, which was well below the critical value of 55% at the onset of dry-out (based on the simulated threshold value from the code).
Two-Phase Cooling Implementation

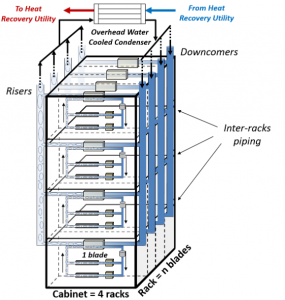

The envisioned cooling technology applied to an entire server rack is presented in Figure 8. In particular, this cooling technology operates with numerous server-level thermosyphons in order to dissipate the heat produced by the large heat sources (i.e. microprocessors, memories, etc.) into the two-phase micro-evaporators and out through the two-phase micro-condensers . Then, the heat is transferred to rack-level thermosyphons designed with a common overhead compact condenser, which dissipates the total heat from the server rack (20-100 kW or more) into the data center’s water cooling loop . The low power components (i.e. motherboards, lighting, etc.) can be air-cooled and the warm air is rejected into the room.
This technology provides high thermal performance due to two-phase heat removal from server-to-rack-level, coupled with a significant energy savings (fewer server-level fans, air movers/blowers, and CRAC/CRAH units). In addition, thanks to the low overall thermal resistance, the secondary side water cooling loop can operate at relatively high temperatures, which makes this technology suitable for waste heat recovery (i.e. distribute to a district heating network or use to enhance the energy efficiency of a power plant ).
The present paper describes and presents test results for an innovative passive two-phase cooling technology for next-generation high-performance computers, which provides higher energy efficiency compared to air- and liquid-cooling technologies deployed today. The experimental study presented in this article was mainly focused on the thermal performance characterization of a low-height thermosyphon to be used in 2-U servers. Experimental results demonstrated very good heat transfer performance and stable cooling capabilities over a wide range of heat loads. The present cooling technology enables high heat transfer performance, low noise level, scalability towards higher heat dissipations and improved reliability while using an environmentally friendly refrigerant (R1234ze) as the working fluid.
This work is carried out as part of the Eurostars Project (PCOOLDATA) that is co-funded by Eureka member countries and the European Union Horizon 2020 Framework Programme, which are gratefully acknowledged for their support. Also, the authors would like to acknowledge Dr. Jackson Braz Marcinichen (JJ Cooling Innovation Sàrl) for contributing on the thermosyphon design and advising on the implementation of the proposed technology.
