Forced convection cooling of airborne electronics


Figure 1. AFT description

Fin pitch = 25.01 per in = 985 per mPlate spacing, b = 0.200 in = 5.08 x 10-3 m
Fin Length = 0.111 in = 2.8 x 10-3 m
Flow passage hydraulic diameter 4rh =
0.004905 ft = 1.50 x 10-3 m
Fin metal
thickness = 0.004 in = 0.102 x 10-3 m
Total heat transfer area/volume between plates, ß = 719.4 ft2
/ ft3 = 2,360 m2 / m3
Fin area / total area = 0.881

Introduction

Thermal control has always been an important part of the design criteria for
airborne electronics on account of the following two characteristics:

  • the airborne environment is harsh, with ambient air temperatures ranging
    from -55 to 100 °C or more,
  • weight and volume constraints dictate that the design be more compact than
    those created for commercial electronics.

In the seventies, it was discovered that natural convection alone in the
airborne environment was unsuitable for keeping the component junction
temperatures at reasonable levels. As air is widely available on aircraft,
thermal engineers naturally orientated more of their designs towards forced
convection.

Design goals

There are two objectives in the thermal control of airborne electronics:

  • to provide a thermal environment which allows the electronic components to
    perform at their specified level. This was not really a problem two years ago
    when military components were readily available. Today, however, military
    components have become scarce and airborne equipment must now be designed with
    industrial components or COTS (Components Off The Shelves).

To meet our goal, the component case temperature must be:

Tcase <
85°C for industrial components,

SRC=”http://s3.electronics-cooling.com/legacy_images/1997/05/20pxls-i.gif” width=”20″ height=”3″>Tcase < 70°C
for COTS

  • to provide a warranty by applying the following criteria for the component
    junction temperature:

Tjunction
< 90°C for a maximum junction temperature (Tjunction max) of
150°C given by the component manufacturer, for normal conditions covering
90 to 95% of the flights,

Tjunction <
Tjunction max – 25°C for extreme flight conditions.

Design methodology

To design an air cooling circuit, the engineer must consider carefully the
following parameters.

Electronic circuit board power dissipation surface density: For
power dissipation densities less than 500 W/m2 (0.05 W/cm2)
on the surface of a fully populated PCB (Printed Circuit Board), free convection
is favored. For power dissipation densities greater than 4000 W/m2
(0.4 W/cm2), forced air cooling should not be used, regardless of
the velocity that can be obtained, and more efficient cooling techniques (heat
pipes, liquid cooling, boiling) should be considered [1]. This upper limit for
forced air cooling is dictated by the fact that heat sinks cannot be used on the
circuits due to the lack of space in avionics racks. The boards are designed for
a minimum pitch. In between these two limits, forced convection is well suited.

Environment: Although air is readily available on an aircraft,
different qualities of air do exist and may determine differences in designs.

Pressurized bay: this is the most favorable case because forced air
cooling can be obtained using a fan. The designer can:

  • calculate a flowrate Qfrom the electronic equipment’s overall power
    dissipation, and air temperature increase through the equipment, using the
    following formula:

Q = Power/((Tout-Tin)xpxcp)

where p and cp are the air specific mass and specific heat.

  • calculate the equipment pressure drop
    P at flowrate Q:

P = f(Q)

  • select a fan from a fan manufacturer’s catalogue using these two
    characteristics (Q, P).

It is important to check that the air velocity obtained on each circuit
provides a convective heat transfer coefficient sufficient to limit the
temperature gradient between the components and the air. If not, it will be
necessary to check the uniformity of air flow distribution on each board. Local
heat sinks can also be used on high power components, if space is available.
Alternatively, a more powerful fan can be selected.

Depressurized bay: the decrease of air density when the altitude
increases must be taken into account when choosing the fan. It is important to
check that the component temperatures will remain within the prescribed limits.

Defining, at atmospheric pressure,

  • Qv0: fan volume flowrate
  • Qm0: fan mass flowrate
  • P0: pressure delivered by the fan
  • P0:
    pressure drop of the electronic equipment at Qv0,
  • 0: air
    density;
    and at altitude z which corresponds to a static pressure Pstat,
  • Qv: fan volume flowrate,
  • Qm: fan mass flowrate,
  • P: pressure delivered by the fan,
  • P: pressure drop of
    the electronic equipment at Qv,
  • : air density, then
    the following relations apply:

/
SRC=”http://electronics-cooling.com/articles/1997/may/images/sym_114.gif” width=”6″ height=”9″>0= Pstat(bar)

Qm/Qm0=
/
SRC=”http://electronics-cooling.com/articles/1997/may/images/sym_114.gif” width=”6″ height=”9″>0

which means that the mass flowrate will decrease at the same rate as air
density, which in turn will yield a greater air temperature increase going
through the electronic equipment. This may not be compensated by the static air
temperature decrease which occurs with altitude.

We also have:

P/ P0 = /
SRC=”http://electronics-cooling.com/articles/1997/may/images/sym_114.gif” width=”6″ height=”9″>0
P/
P0 =
/
SRC=”http://electronics-cooling.com/articles/1997/may/images/sym_114.gif” width=”6″ height=”9″>0

which means that the pressure delivered by the fan will decrease but will be
compensated by the decrease of pressure loss at Qv. The motor glide
may change with air density, which will have an impact on the fan flowrate and
delivered pressure and thus sh should not be neglected, especially if the
altitude range is wide.

Then the design steps are the same as those applied to the previous case.

Aircraft Environment Control System (ECS) air: aboard an aircraft,
especially fighter aircraft, there exists an ECS which can provide cool air to
electronic equipment. Flowrate and pressure can generally be provided in
sufficient quantities to cool electronics efficiently.

This type of forced convection cooling creates problems due to air
pollution. This air contains particles such as dust, sand, metals and fluid
droplets, typically oil, kerosene and liquid water.

It is therefore unwise to pass this air directly over the electronic
components due to the risk of decreased reliability from micro short-circuits,
abrasion or chemical degradation of the components.

Electronic equipment should be designed to avoid contact between the
components and the pollutants: air is passed through cold plates installed
either directly at the board level (see Figure 1) or at the rack level (see
Figures 2 and 3).


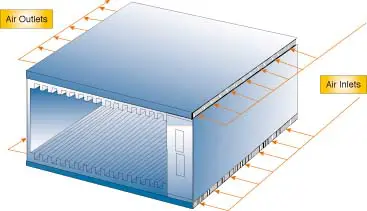

Figure 2. Air cooled rack for conduction cooled
electronic modules

Figure 1 shows a compact finned cold plate embedded in a double sided
circuit. This is an Air Flow Through module (AFT). The heat generated by the
electronic components is transferred first by conduction through the board and
then by forced air convection. The forced convection heat transfer coefficient
is enhanced by the compact fins of the cold plate. Air is usually directed
along the width of the circuit boards in order to limit the pressure drop.

Figure 2 shows a rack which has two cold plates cooled by ECS air. The rack
includes circuit boards which are cooled by conduction enhanced by a metal
(generally aluminum or copper) plate in contact with the wall cold plates
through thermal clamps located on each side of the circuit as shown on Figure 3.


Figure 3. Conduction cooled electronic module

Design tools

Two kinds of design tools are required for the analysis of the forced
convection cooling methods described in the previous paragraphs:

  • a CFD code to calculate pressure drops, air PCBs or in finned cold plates,
  • a thermal analysis code to check that component junction and/or case
    temperatures are within the prescribed limits when cooled coefficient given by
    the CFD code.

Iterations are generally necessary between the two types of calculations to
converge to a satisfactory solution.


Figure 4. Direct air forced convection in a board
rack

CFD calculations: Figure 4 shows an example of a Flotherm CFD
calculation for six fan cooled PCBs. In this case, the CFD calculation has
three purposes:

  • to aid in fan selection, calculating the pressure drop for the prescribed
    flowrate;
  • to design the air distribution and collecting chambers, so that the air
    velocity is uniform for each PCB, assuming approximately uniform power
    dissipation. Figure 5 shows the upper view of the rack and the air distribution
    among the five PCB’s;


Figure 5. Air distribution in between the boards

  • to get air velocity and air temperature on each PCB, which will constitute
    the boundary conditions for the thermal analysis of each circuit, Figure 6 shows
    the air velocity distribution on one of the circuit boards.


Figure 6. Air velocity on one of the rack boards

Thermal analysis: Once the boundary conditions have been obtained
from the CFD calculation, a thermal analysis may be performed on any part of the
circuit. However, two other essential points must be considered:

  • the convective heat transfer coefficient on the component faces and on the
    PCB must be evaluated. Fully populated circuits are very complex objects from a
    fluid dynamics point of view, which explains why literature correlations,
    classically used to estimate convective heat transfer coefficients fail to give
    correct values for electronic cooling. The heat transfer coefficient is usually
    underestimated using these of correlations or CFD calculations; Thomson-CSF
    Radars & Contre-Mesures has developed its own correlations from experiments,
    over a ten year span.
  • Compact thermal models for each component populating the PCB are required
    because, detailed models of each component would take hours or days to run on a
    computer; the European project DELPHI methodology and results [2] have helped
    considerably to increase Thomson-CSF and other partners ability to create
    reliable compact models.

Figure 7 gives an example of the thermal analysis performed on one of the
circuits of the previous rack, using a board level thermal analysis tool, VTAT
(Visula Thermal Analysis Tool) of Zuken Redac.


Figure 7. Thermal analysis on a board using VTAT

Cooling method summarized

Based on previous work conducted within Thomson-CSF – including both CFD
calculations and thermal analysis checked with experiments – a ranking of the
three different types of forced convection described at the beginning i.e.
direct air forced convection, AFT and conduction cooled modules in an air cooled
rack, can be created.

The ranking is as follows:

1. Direct air forced convection on components may authorize power
dissipation densities on a fully populated board, up to 3000 W/m2,
with an air velocity in the range of 5 m/s. This type of design requires
non-polluted air and a powerful fan on account of the high velocity of 5 m/s
which will generate high pressure drops.

2. An AFT may allow power densities up to 3000 W/m2 or more,
but with a very large pressure drop penalty. For 3000 W/m2, the
pressure drop will be in the order of 5 mbar for a 100 mm wide module which
yields, for a 200 mm wide classical module, a total pressure drop of 10 mbar,
not accounting for the distribution and collecting air chambers [1].

3. Conduction cooled modules in an air cooled rack are limited to power
densities up to 1500 W/m2, due to the parabolic temperature gradient
from conduction in the metal plate embedded in the PCB (see Figure 8).


Figure 8. Termperature gradient in a metal plate
embedded in a 150mm wide board

Conclusion

Thermal control of airborne electronics has allowed the development of the
advanced air forced convection cooling techniques which have been presented
here. Furthermore, increases in power dissipation densities combined with the
constraint of lightness will require the investigation of even more efficient
cooling techniques such as liquid flow through modules, flat heat pipes and
direct evaporation. The two latter techniques still require improvements before
use on board aircraft on account of their sensitivity to stressed mechanical
environment.

Yannick Assouad
Head of the Thermal and Mechanical Analysis
Group
Thomson-CSF Radars & Contre-Mesures
78852 Elancourt, Cedex,
France
Tel: +33 1 345 95 111 Fax: +33 1 345 95 014
Email:
yannickassouad@rcm.thomson.fr


References

1. Y. Assouad, M.Caplot, T. Gautier, “Advanced
Cooling Techniques Comparison for Airborne Elecronic Circuits”, Semitherm,
Austin, TX, January, 1997.

2. H. Rosten, “Final Report to Semitherm XIII on the
European-funded Project DELPHI – the Development of Libraries of Physical Models
for an Integrated Design Environment”, Semitherm XIII, Austin, TX, 1997,
pp. 73-91.

Comment
