**Introduction**

Many of the components currently used in electronics systems employ organic materials. Under certain circumstances, the diffusion of moisture into electronic components can lead to problems in the electrical performance and overall reliability of these components. Examples are the increase in the attenuation of high frequency signals in printed circuit boards and package substrates [1], reduction in optical fiber mechanical strength [2], and popcorn failure of organic packages during soldering operations[3].

On occasion, it is necessary to predict the rate of diffusion of moisture in organic materials in order to successfully manage these technical issues. The expertise for performing these calculations is often a rare commodity in engineering organizations. However, analogies between heat flow and moisture diffusion can be leveraged to allow the thermal engineer to perform accurate diffusion calculations by appropriately adapting more familiar thermal methods[4].

This article provides a procedure for quantifying moisture diffusion using a method, developed in a previous column, for the analysis of thermal transient problems involving the numerical solution of a multi-stage RC (resistor-capacitor) circuit [5,6].

**Moisture Diffusion Examples**

There are many situations in which the diffusion of moisture occurs in organic materials used in electronics hardware. Some are intentional such as: exposure to elevated temperature/humidity in conjunction with reliability or performance testing; and bake out procedures intended to promote the removal of moisture from components to avoid moisture-induced failures. Other exposures may occur in the field, while equipment is being stored in humid environments. Lastly, elevated temperatures resulting from equipment operation will reduce the moisture content of electronic components. In all of these cases it is important to be able to calculate the rate of moisture diffusion both into and out of the components of interest and to determine the moisture concentration at any time during the exposure.

Part 1 of this article deals with a simple one-dimensional moisture diffusion situation at a constant temperature, that can be applied to many situations of interest. Part 2 will deal with a 2-D moisture flow situation encountered in laminate semiconductor packages, both at a uniform temperature and under a thermal gradient resulting from the self-heating of the package.

**Calculation Method**

The basic equations governing heat flow and diffusion presented are indicated below. Equation 1 is commonly referred to as Fourier’s heat equation and Equation 2 as Fick’s first Law of diffusion.

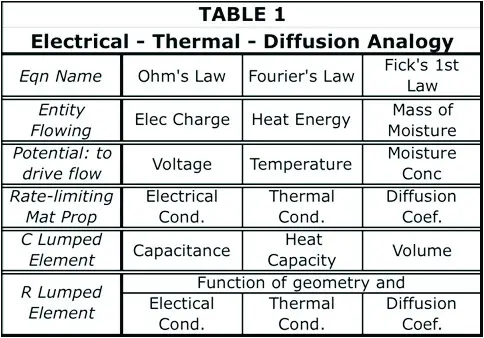

In each case, the magnitude of a vector field (the flowing entity: thermal energy, q, or the mass flux of the diffusing substance, J) is determined by the product of the gradient of a scalar field (temperature, T, or concentration, *Conc*) and a rate-limiting parameter (thermal conductivity, k, or diffusion coefficient, D). [Author’s note: a common symbol for concentration is C. In this article, the non-standard symbol, *Conc*, is used to represent concentration, since the symbol C has already been appropriated in this series of articles to mean capacitance.] When calculating either transient heat flow or mass flow using an RC circuit, the resistance is calculated using an appropriate equation containing the thermal conductivity or diffusivity and appropriate terms representing the geometry. The capacitance is equal to the heat capacity in the case of the thermal problem. For the diffusion problem, it is simply the volume of the component or region of interest. These analogies between heat flow and mass diffusion are summarized in Table 1, which also includes those governing electron flow.

In a recent installment of this column, a numerical solution of a multi-stage RC circuit was described and applied to the thermal analysis of a high-power chip in thermal contact with a heat sink [5,6]. This method can be applied directly to the diffusion problem, with appropriately calculated values of R and C.

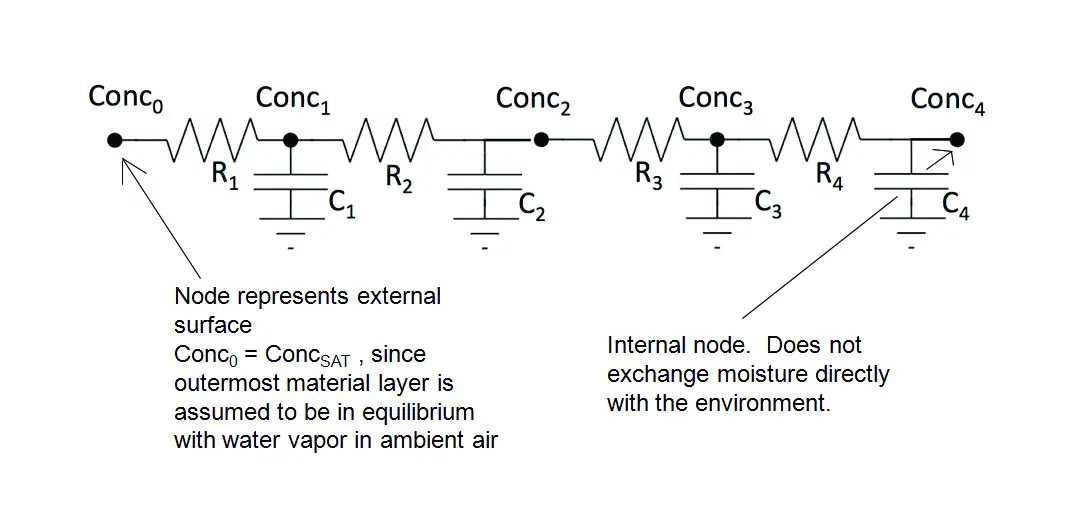

The RC circuit assumed for the current calculations is presented in Figure 1. It is a 4-stage RC circuit, representing moisture flow from an external surface, represented by node 0, and flowing in a series fashion through 4 successive regions. The 4^{th} node is an internal one and is not directly connected to the environment. These regions can be parts of a single component or material, or they can be different materials.

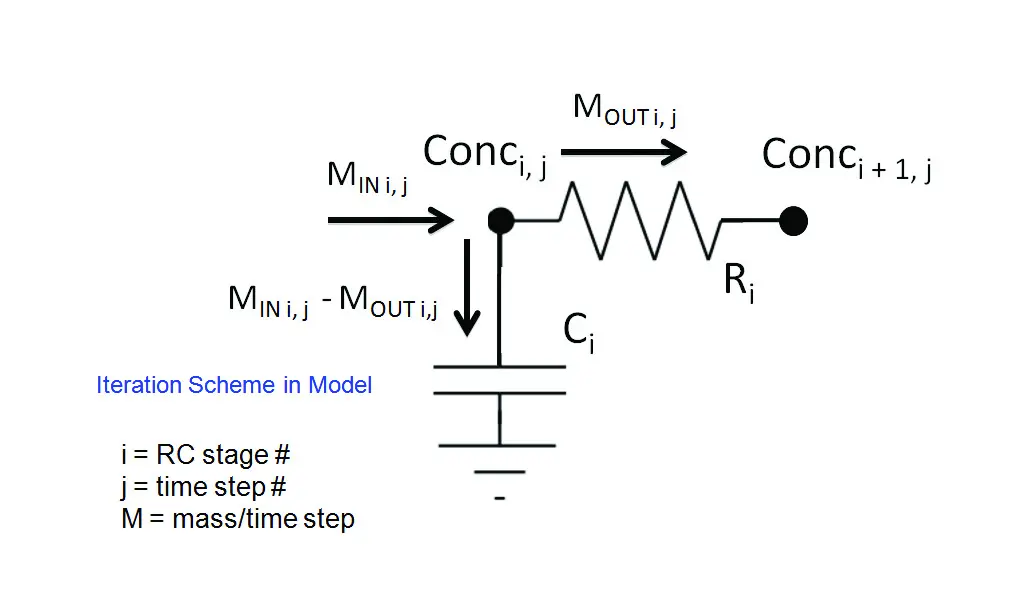

Figure 2 illustrates the operation of the numerical model, within a given time step, at a single stage in the circuit, in partitioning the incoming mass of moisture, M_{IN} , into a portion flowing into capacitor C_{i} and a portion flowing through R_{i} into the adjacent node i+1. A detailed description of the numerical method, along with recipe for implementing it in a spreadsheet are found in Reference [5].

**Model Assumptions**

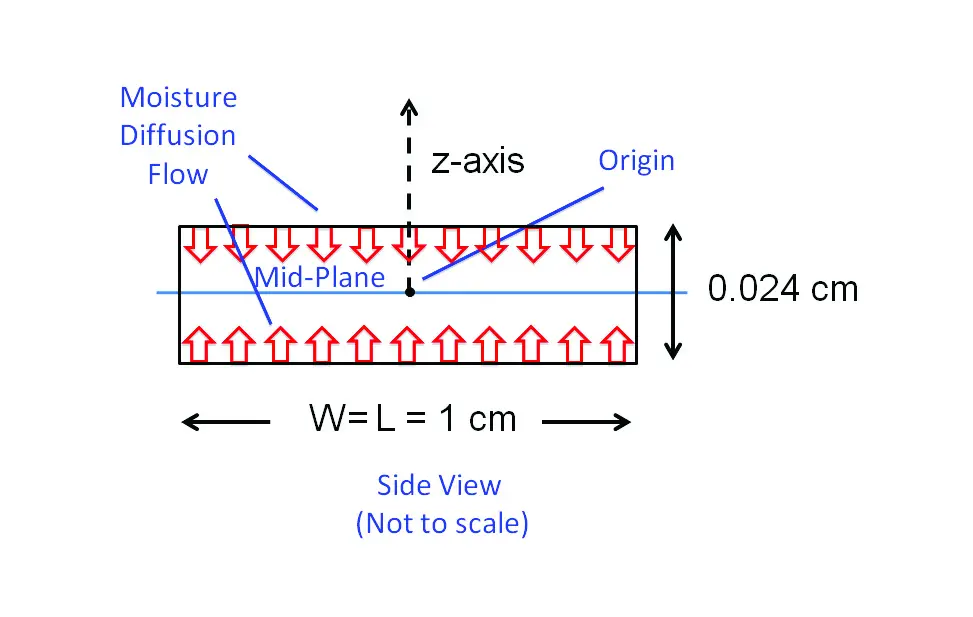

Figure 3 depicts a common situation encountered in diffusion problems: a slab of homogeneous material in which moisture diffuses from the top and bottom surfaces toward the mid-plane. Diffusion from the edges is neglected, due to their much smaller surface area. The material is assumed to be BT (bismaleimide triazine), a dielectric material commonly used in laminate semiconductor packages.

Two different environmental exposures are assumed: 1) 85˚C/85% RH “soak” and 2) 105˚C “bakeout.” In each case, the process is allowed to continue to completion; i.e.: the soak process achieves the saturation concentration of moisture throughout the sample and the bakeout process drives all moisture from the sample.

The sample thickness is somewhat arbitrary, but is representative of that for a single layer of a package laminate.

**Diffusion Properties**

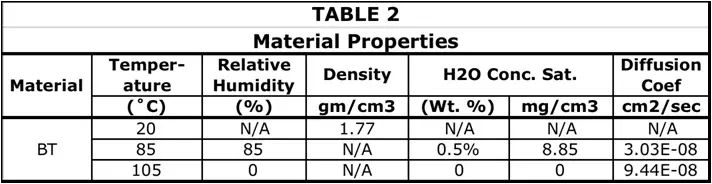

Two material properties are needed to perform diffusion calculations: the diffusion coefficient, D, and the saturated concentration of moisture (*Conc*_{SAT}). *Conc*_{SAT} represents an upper limit for the moisture content of a particular organic material at given values of T and RH. These properties for the soak conditions were obtained from the literature [7]. To obtain a value for D at 105˚C for BT, it was necessary to calculate the activation energy, based on data from this reference taken at 50˚ and 85˚C, and extrapolate the data to 105˚C. The following equation relates the diffusion coefficient to the activation energy, U, where T is the absolute temperature and k equals Boltzmann’s constant.

Because of the functional form of this equation, log(D) is a linear function of log(1/T) , with the slope proportional to U.

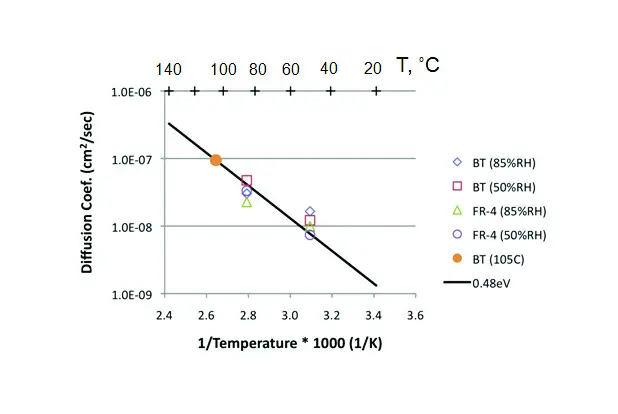

An activation energy equal to 0.48 eV was derived from a best-fit process. This method has been previously applied to the analysis of diffusion constants for epoxy molding compound [8]. Figure 4 displays the resulting graph. Given the fact that diffusion coefficient data may not be available at the particular temperature(s) of interest, this method could be very valuable in deriving values of D at the required temperatures. [Note: the reader should be aware of the sensitivity of the resultant value of D to errors in calculating the activation energy when applying this equation, due to its non-linear nature. A ±2% error in the activation energy will yield a ±30% error in D.] Reference [7] is also valuable in this regard, since it provides values of *Conc*_{SAT} for a number of organic materials commonly used in laminate and PCB fabrication over a range of values of T and RH. Reference [9] provides moisture-related data for a wide variety of polymeric materials.

Reference [7] also provides a value for % of moisture, by weight, equal to 0.5%, for a BT sample after saturation at 85˚C/85% RH. This is transformed into *Conc*_{SAT} , the chosen parameter for this calculation, by multiplying it by the mass density of BT. The *Conc*_{SAT} for the 105˚C condition was set at 0. The rationale for this choice was that the typical bakeout oven is open to the atmosphere. The partial pressure of water vapor at moderate levels of RH in the room containing the oven represents less than 1% RH at 105˚C. Table 2 summarizes the material properties used in the subsequent calculations.

**Calculation of R and C Values**

When the transient thermal method in References [5] and [6] was applied to a chip + package + heat sink configuration, the physical model was composed of distinct components made of differing materials. Consequently the partitioning of the physical model into discrete R and C regions was rather straightforward. The present example differs from this earlier one since it consists of a single material.

The method used in the current problem is as follows.

- Since there is a symmetry plane at z = 0, it is only necessary to solve for one half of the model. Due to symmetry, this solution applies to both halves.
- Divide each half-model into 4 separate cuboidal C regions of equal volume. The thickness of of each cuboid is equal to 1/8 times the total sample thickness = 1/8 x 0.024 = 0.003 cm.
- The R regions are assumed to connect the centroid plane of each C region to that of its neighbor. Hence, the ∆z value associated with each of these resistances would be 0.003 cm. The one exception is for the resistance between outermost C region (C
_{1}) and the exterior surface. In this case the ∆z value (for R_{1}) would be 0.0015 cm.

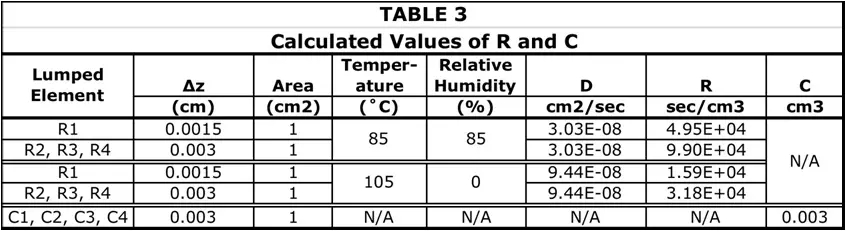

The spatial boundaries of the different R and C regions are illustrated in Figure 3b. The Figure also indicates the formulas for calculating the R and C values for a 1-D diffusion situation. Table 3 provides the dimensions of each region and the calculated values of R and C based on the appropriate value of D and the specified geometry.

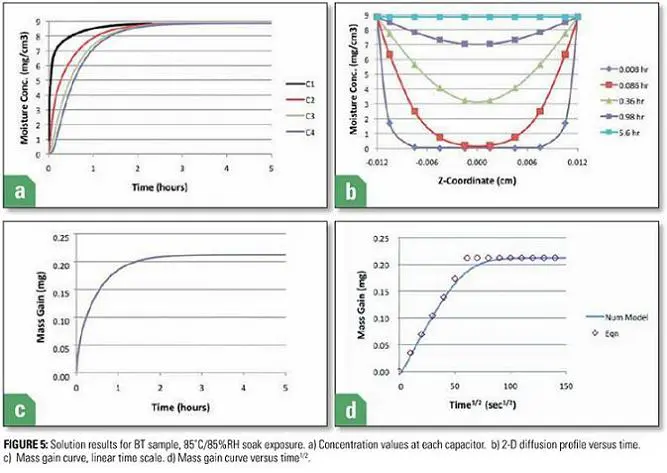

Figure 5 displays four graphs illustrating various aspects of the transient moisture behavior of the sample as it is transferred from a dry environment into the 85˚C/85%RH soak environment. Figure 5a plots the value of the moisture concentration in each of the four C regions. Region C_{1}, representing the outermost region, responds most quickly. Conversely, region C_{4}, associated with the innermost region, adjoining the symmetry plane, is the slowest to respond. Figure 5b plots each the value of moisture concentration calculated as various values of elapsed time versus the z location of the centroid of each C region. Results for all regions of the sample, both above and below the symmetry plane are plotted to assist visualization of the 2-D moisture concentration profile. It illustrates the time lag involved with the center region of the sample ultimately achieving moisture equilibrium with its environment.

Figure 5c plots the total mass of absorbed moisture versus time. It is calculated using the following equation. The prefactor of 2 results from the half-symmetry of the model.

The shape of the M_{H2O} vs time curve is that expected in a soak situation. Its time constant (time to reach 63% of the saturated value) is 0.42 hours.

Finally, Figure 5c plots the total mass of absorbed moisture versus √time. This is a useful way of plotting diffusion data since the slope of the M_{H2O} vs √time is a constant in the initial part of the diffusion transient. This behavior is quantified in Eqn 5.

where l is the thickness of the sample, which is assumed to be exposed to moisture from two opposing sides [6].

The symbols in Figure 5d for values < M_{SAT} are generated using the above equation. This serves as a validation of the numerical procedure. Also, it serves as an analytical method for approximating the M_{H2O} vs time curve it simple situations such as this, not requiring the precision of the numerical model.

The corresponding curves for the bake environment are shown in Figure 6. The sample is assumed to have been fully saturated with moisture from the 85˚C/85%RH at the moment it is placed into the bakeout oven at 125˚C. Qualitatively, the moisture versus time curves are the inverse of those in Figure 5. Quantitatively, however, the time constant for the bake process is approximately one-third of that in the soak process and is equal to 0.14 hour. This is due to the fact that at 125˚C, D is approximately three times its value at 85˚C. Figure 6b indicates, as before, that the moisture concentration at the center of the sample lags considerably behind the outer regions in equilibrating with the new, dry environment. The predicted curve in Figure 6d shows good agreement with the symbols, whose M_{H2O}values were calculated using Eqn 4 at the higher value of D, and where the slope was assigned a negative sign.

**Comments Regarding the Generality of this Method**.

The method presented here has been applied to a situation that could have been handled readily using purely analytical methods [2, 7, and 8] The rationale for doing so was to use a simple example for demonstrating the method clearly and to be able to use the accompanying analytical solution to validate the numerical model.

The RC circuit demonstrated herein can be adapted to a greater range of geometries, since elements representing different geometrical “primitives” can be combined [10]. Furthermore, it is possible to modify the numerical solution to accommodate parallel flux paths, to provide even more adaptability to a variety of applications [11]. Alternatively, it is possible to use SPICE-type electrical circuit simulation software to perform these calculations [12]. In contrast, closed-form analytical methods are generally limited to simple geometries, typically cuboids, cylinders, and spheres.
